ISO 9001 : 2008 + 13485 : 2012

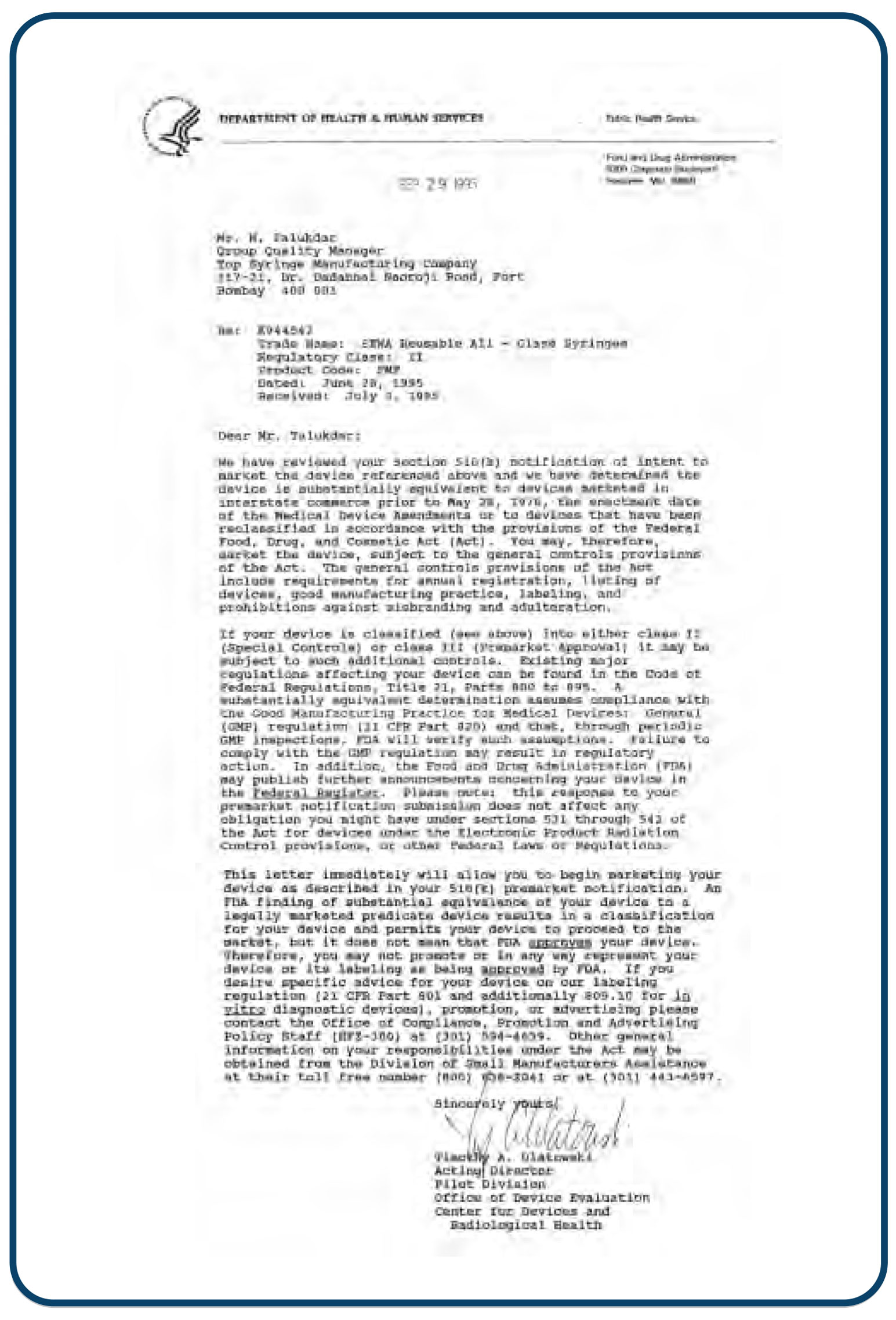

USFDA Certificate

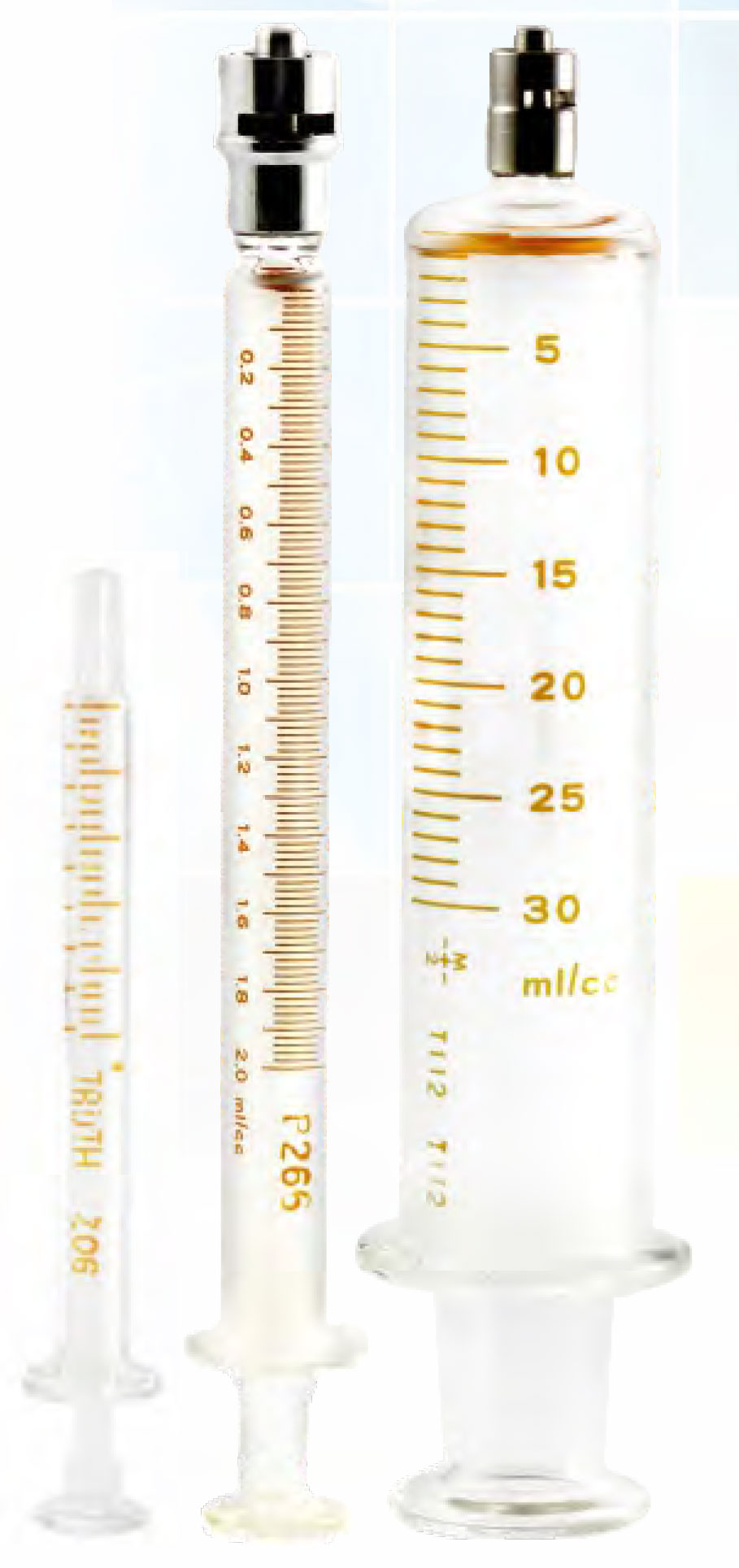

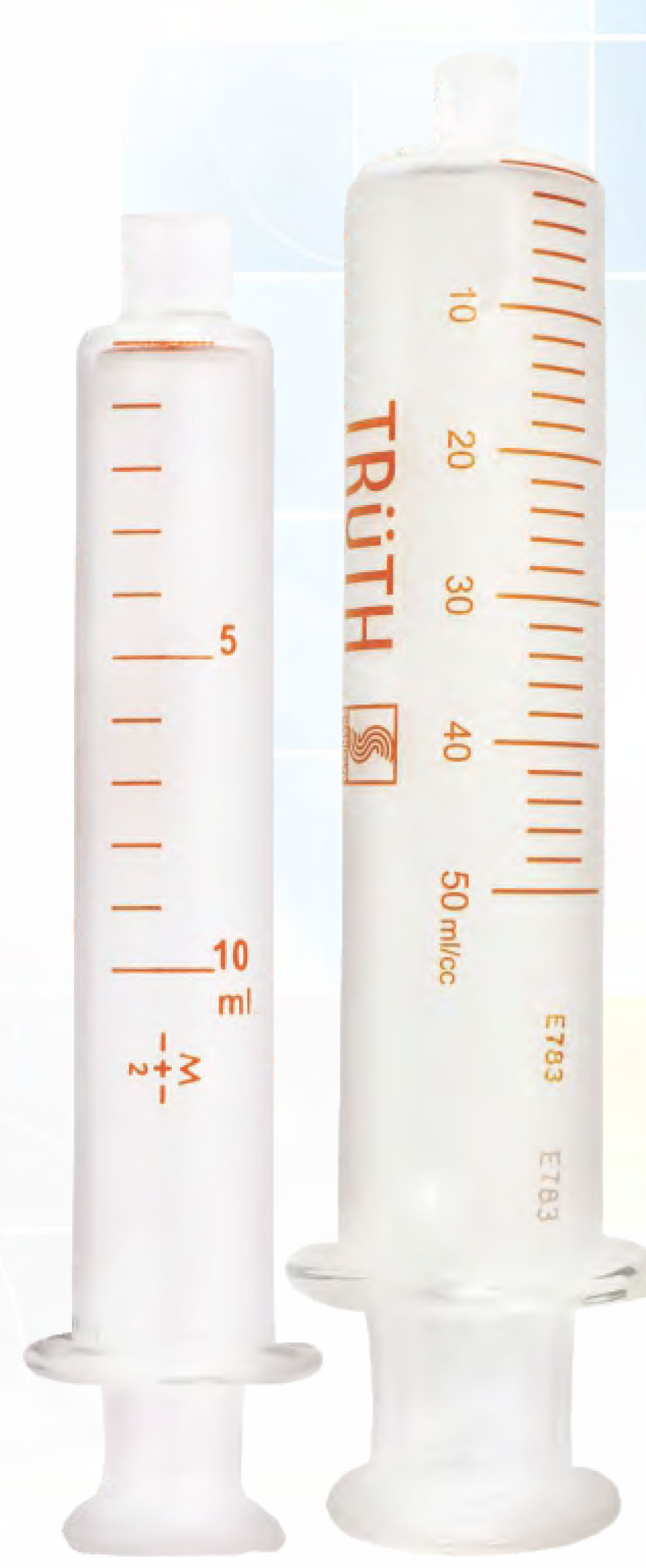

The syringes ensure easy filling and perfect matching of barrels and plungers.

Any interchangeable syringe of a particular size will fit any interchangeable barrel of the same size.

Features :

• Interchangeable part of the syringe provide instant assembly without any sorting during bulk sterilization and hence improves operational efficiency.
• Precision shrinking ensures improved leak free smooth operation.
• Colored plunger facilitate dosage
• Measurements.
• Made from borosilicate glass providing protection against thermal shock.
• Corrosion resistant.
• Graduations marks permanently fused into glass barrel.
• Turncated flanges prevent syringe from rolling.
• Special graduation on request.

1) Interchangeable Syringe Center All Glass Tip (CT)

01-03-01-03	1ml / 0.05ml / 10pcs
01-05-01-04	2ml / 0.1ml / 10pcs
01-07-01-04	3ml / 0.1ml / 10pcs
01-08-01-05	5ml / 0.2ml / 10pcs
01-09-01-05	10ml / 0.2ml / 10pcs
01-10-01-06	20ml / 0.5ml / 10pcs
01-11-01-07	30ml / 1ml / 6pcs
01-13-01-08	50ml / 2ml / 6pcs
01-13-01-08	100ml / 2ml /1pcs

2) Interchangeable Syringe Metal Luer Lock Tip (CL)

01-03-02-03	1ml / 0.1ml / 10pcs
01-05-02-04	2ml / 0.1ml / 10pcs
01-07-02-04	3ml / 0.1ml / 10pcs
01-08-02-05	5ml / 0.2ml / 10pcs
01-09-02-05	10ml / 0.2ml / 10pcs
01-10-02-06	20ml / 0.5ml / 10pcs
01-11-02-07	30ml / 1ml / 6pcs
01-13-02-08	50ml / 2ml / 6pcs
01-15-02-08	100ml / 2ml / 1pc

1) Glass Luar Tip (CT)

04-01-01-01	0.25ml / 0.01ml / 10pcs
04-02-01-01	0.5ml / 0.01ml / 10pcs
04-04-01-02	1ml / 0.02ml / 10pcs

2) Metal Luar LockTip (CL)

04-04-02-02	1ml / 0.02ml / 10pcs
03-06-02-03	2ml / 0.05ml / 10pcs
03-08-02-05	5ml / 0.2ml / 10pcs
03-09-02-05	10ml / 0.2ml / 10pcs
03-10-02-06	20ml / 0.5ml / 10pcs
03-11-02-07	30ml / 1ml / 6pcs
03-13-02-08	50ml / 2ml / 6pcs
03-15-02-08	100ml / 2ml / 1pc

The Barrel of the glass syringe is made out of hard borosilicate Glass that has outstanding chemical resistance. This material also provides a heat resistance suitable for dry heat sterilization and good wear resistance

High machining precision is used to maintain slideablity between barrel and plunger.

The main features include.

• These Syringes have a fine Graduation
• Extremely air tightness and can hold a particular pressure
• Smooth functioning and movement during drawing and injection offering a jerk free experience
• A certificate of calibration is provided
• Also available with 3 Ring for better control & handling pressure and viscous substances on request

1) Glass Luar Tip (CT)

04-04-01-01	1ml / 0.01ml / 10pcs
03-06-01-03	2ml / 0.05ml / 10pcs
03-08-01-04	5ml / 0.1ml / 10pcs
03-09-01-04	10ml / 0.1ml / 10pcs
03-10-01-06	20ml / 0.5ml / 10pcs
03-13-01-06	50ml / 0.5ml / 6pcs
03-15-01-06	100ml / 0.5ml / 1pc

2) Metal Luar LockTip (CL)

04-04-02-01	1ml / 0.01ml / 10pcs
03-06-02-03	2ml / 0.05ml / 10pcs
03-08-02-04	5ml / 0.1ml / 10pcs
03-09-02-04	10ml / 0.1ml / 10pcs
03-10-02-06	20ml / 0.5ml / 10pcs
03-13-02-06	50ml / 0.5ml / 6pcs
03-15-02-06	100ml / 0.5ml / 1pc

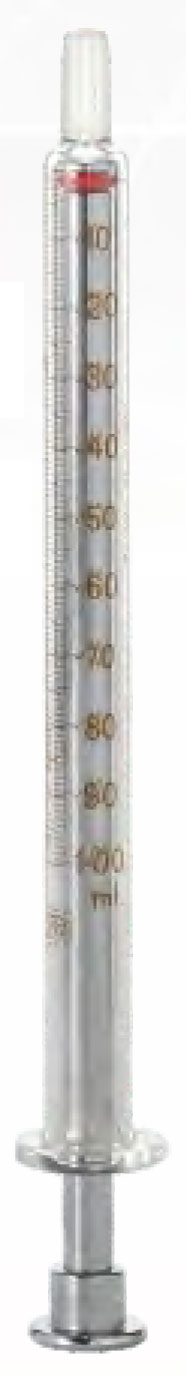

Technical Details

		Graduation Scale		Max Pressure Rating
	Total	Major	Minor	Bars	PSIG
2ml	100	0.2ml	0.02ml	3.00	43.50
5ml	50	1ml	0.1ml	3.00	43.50
10ml	100	1ml	0.1ml	2.00	29.00
10ml	100	1ml	0.1ml	2.00	29.00
50ml	100	5ml	0.5ml	1.50	21.76
100ml	200	5ml	0.5ml	1.50	21.76

Temperature : Max. 50°C/122°F • Min. 10°C/50°F

Control Glass Syringes with 3 finger ring, Glass or Stainless Steel Piston & Rubber Ring Reusable injection glass syringe for human and veterinary medicine.

Features :

• The 3 ring offers better grip while holding the syringe & administering the dose
• Solid glass / metal version.
• Graduated glass syringe with precision cut.
• Ground-in piston with 'O' ring made of stainless steel
• Autoclavable (134°C or 273°F).
• Luer Lock attachment to secure needle.
• Plunger and Glass Syringes can be interchanged as desired
• The SS Piston Glass Syringes is transparent and even after long use shows no sign of wear, as does the stainless steel plunger
• There is no danger of breakage if glass syringe is not taken to pieces for sterilizing.
• The plunger is smooth and so ensures enhanced tightness

Control Glass Syringes with 3 Finger Ring Glass Piston Metal Luer Lock Tip (CL)

19-05-02-04	2ml / 0.1ml / 1pc
19-07-02-04	3ml / 0.1ml / 1pc
19-08-02-05	5ml / 0.2ml / 1pc
19-09-02-05	10ml / 0.2ml / 1pc
19-10-02-06	20ml / 0.5ml / 1pc
19-13-02-08	50ml / 2ml / 1pc

2) Control Glass Syringes with 3 Finger Ring, Stainless Steel Piston & Metal Luer Lock Tip (CL)

19-30-02-05	10ml / 0.2ml / 1pc
19-31-02-06	20ml / 0.5ml / 1pc
19-32-02-08	50ml / 2ml / 1pc

Record Glass Syringes

3) Record Syringe Metal Record Tip

17-04-21-04	2ml / 0.1ml / 1pc
17-07-21-04	3ml / 0.1ml / 1pc
17-08-21-05	5ml / 0.2ml / 1pc
17-09-21-05	10ml / 0.2ml / 1pc
17-10-21-06	20ml / 0.5ml / 1pc
17-13-21-08	50ml / 2ml / 1pc

4) Record Syringe Metal Luer Lock Tip (CL)

17-04-02-04	2ml / 0.1ml / 1pc
17-07-02-04	3ml / 0.1ml / 1pc
17-08-02-05	5ml / 0.2ml / 1pc
17-09-02-05	10ml / 0.2ml / 1pc
17-10-02-06	20ml / 0.5ml / 1pc
17-13-02-08	50ml / 2ml / 1pc

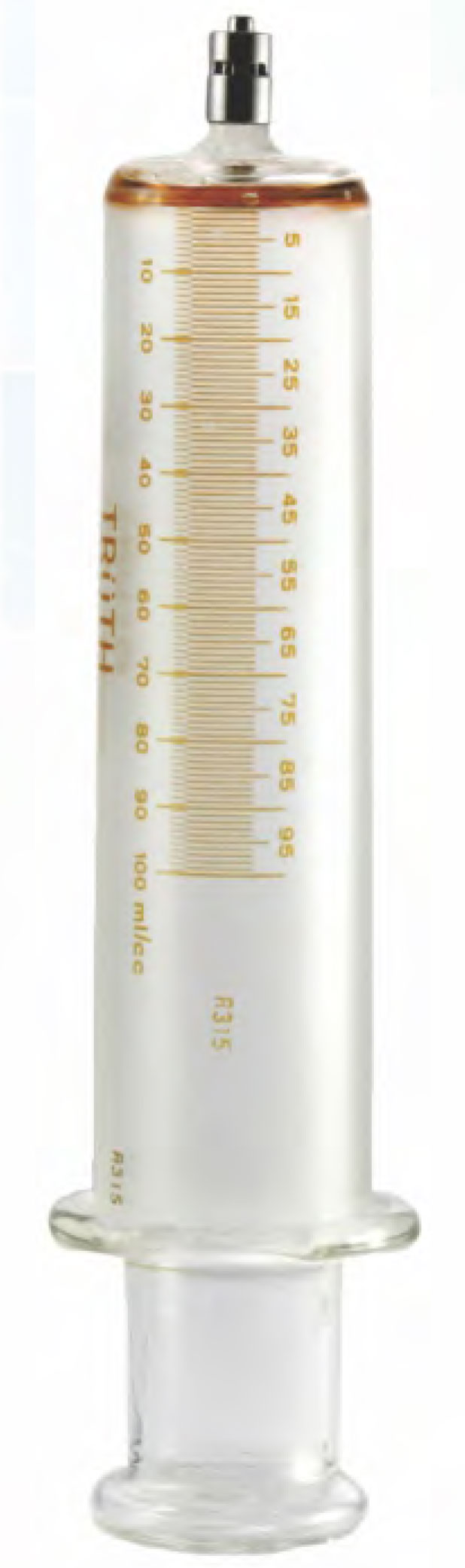

Specification :Gas Syringes, Truth, 100ml with 40mm capillary tube, Borosilicate Glass, Amber Graduation printed of 1ml. Supplied without glass stopcock.

Gas Syringe with capillary nozzle :
27-15-24-13 100ml / 1ml / 1pc

All gases can be collected using a gas syringe. Used to collect and measure volumes of gases during reactions producing gases.

The gas syringe is connected by a tube to the flask that is giving off the gas as shown in the images below.

The gas syringe has marks along its length that allow the volume of collected gas to be measured. As the volume of collected gas increases, the plunger moves further out of the syringe.

As the volume of collected gas increases, the plunger moves further out of the syringe.

The volume of collected gas can be measured in time as it increases, a graph of volume against time can be plotted. This can be used to show the rate of the reaction.

Glass Syringes for Filling Machines are manufactured from hard borosilicate glass and are precisely calibrated for accuracy. They are designed to fit most of the commonly used ampoules, vials & bottle filling machines.

1) Wide Mouth Glass Tip

16-07-04-04	2ml / 0.1ml / 10pcs
16-08-04-05	5ml / 0.2ml / 10pcs
16-09-04-05	10ml / 0.2ml / 10pcs
16-10-04-06	20ml / 0.5ml / 10pcs
16-11-04-07	30ml / 1ml / 6pcs
16-13-04-08	50ml / 2ml / 6pcs
16-15-04-08	100ml / 2ml / 1pc

	A	B	C	D
2ml	7.2	10	12 ± 0.5	10
5ml	7.2	10	15 ± 0.5	10
10ml	7.2	10	18.1 ± 0.5	10
20ml	7.2	10	23.1 ± 0.5	10
30ml	7.2	10	27 ± 1	10
50ml	7.2	10	32 ± 1	10
100ml	7.2	10	41 ± 2	10

2) 1/4 UNF Thread Tip Glass Syringes

23-07-13-04	3ml / 0.1ml / 10pcs
23-08-13-05	5ml / 0.2ml / 10pcs
23-09-13-05	10ml / 0.2ml / 10pcs
23-10-13-06	20ml / 0.5ml / 10pcs
23-11-13-07	30ml / 1ml / 6pcs
23-13-13-08	50ml / 2ml / 6pcs
23-15-13-08	100ml / 2ml / 1pc

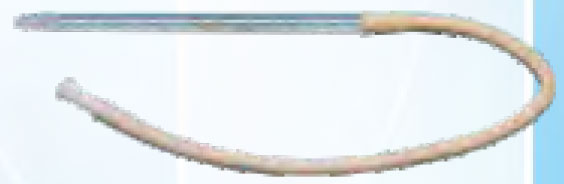

1) Toomey Evacuating / Irrigation Glass Syringes

The DaVinci self refilling syringe line offers precision instruments you can rely upon. Intended for safe and reliable liquid distribution, the selection comes in a range of volumes. One-year warranty.

The DaVinci syringe is an excellent solution for accurate delivery of repetitive fixed doses without any errors during use. This self refilling syringe is most effective when worked in the laboratory. The Comfortable Grip and ergonomic design ensure fatigue free working during serial precision dosing.

The fast and reliable volume selection ensures highly accurate dosing. The robust construction makes it easily autoclavable.

1) DaVinci Feed Tube Set - 70 Series

This product is for use with feed tube. This model comes with accessories that facilities repetitive dosing from bottles or jars using feed tubes, sinker valve, feed cannula etc. The sinker valve ensures it reaches and stays at the bottom of the jar during the time of usage. This would ensure that the entire liquid in the jar would be used making it highly effective.

The model is compatible for use with aqueous, oily, viscous or heavy iron solutions as well as a variety of suspensions using special viscous spring The long life and durability of the product makes it the most economical model available. Reusable needles included in select models.

70-02-23-29	0.5ml / 0.05ml / 1pc
70-04-23-29	1ml / 0.05ml / 1pc
70-05-23-29	2ml / 0.1ml / 1pc
70-08-23-29	5ml / 0.25ml / 1pc

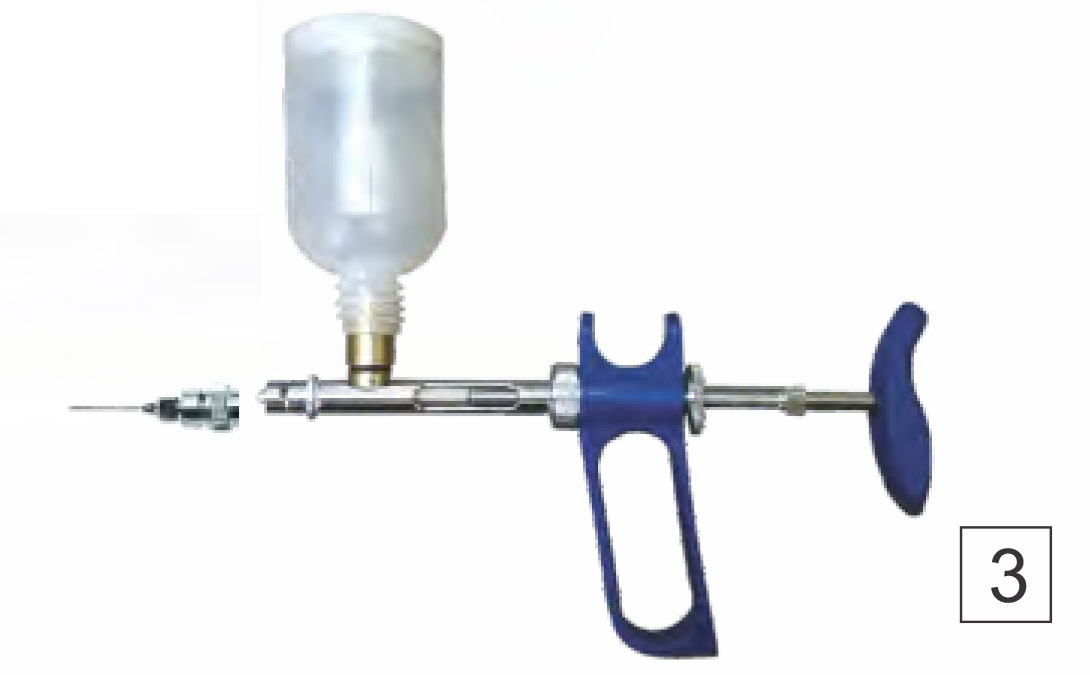

2) DaVinci Vial Holder Set 71 Series

The DaVinci Vial Self Refilling syringe is another liquid feeding model. Consisting of a vial holder, integrated vented needle, locking ring and bottle lock, this 'Vial Holder' model is used to draw liquid out of the original liquid manufacturer's vial. The Vial Holder body is at an optimal angle. The locking ring on the vial ensure the vial does not get dis engaged from the Vial Holder body. The integrated vented needle ensure smooth operation of the dosing. The detachable slant Vial Holder Body fits standard vials. The safety locking nut ensure reliable and highly accurate repetitive pre-fixed dose dispensing.

71-02-23-30	0.5ml / 0.05ml / 1pc
71-04-23-30	1ml / 0.05ml / 1pc
71-05-23-30	2ml / 0.1ml / 1pc
71-08-23-30	5ml / 0.25ml / 1pc

3) DaVinci Vial Holder Set - 71 Series - Utility

The Vial Holder Set - Utility is another variation in the VHS series. Fixed with a 50ml PP reservoir fits onto the 2 way valve to ensure dosage administration of the desired liquidirrespective of the liquid’s original container packing.

71-02-22-30	0.5ml / 0.05ml / 1pc
71-04-22-30	1ml / 0.05ml / 1pc
71-05-22-30	2ml / 0.1ml / 1pc
71-08-22-30	5ml / 0.25ml / 1pc

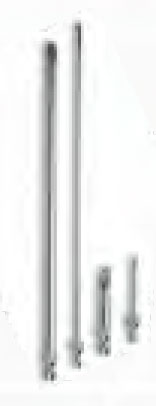

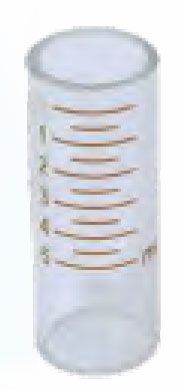

DaVinci’s Spares Glass Barrel, Grounded, Interchangeable

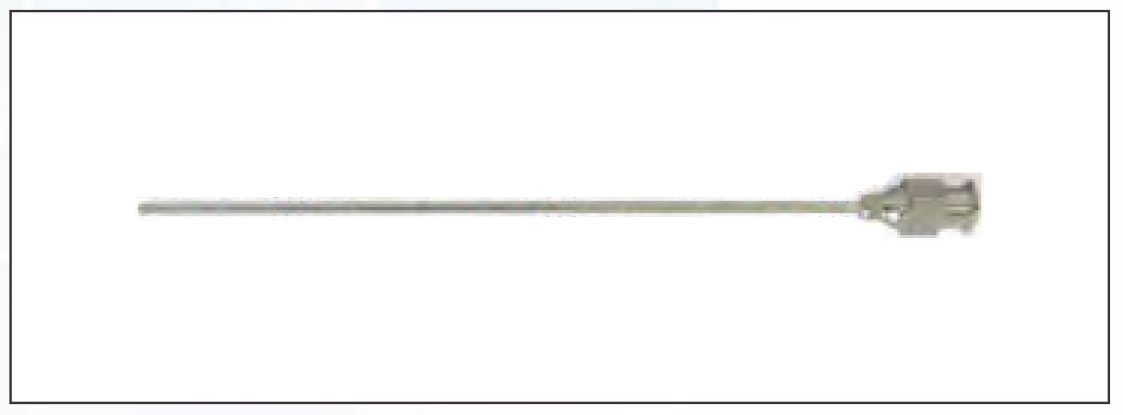

DaVinci Cannulas

Short Vent Cannulas

DaVinci Viscous Spring

DaVinci Protection Sleeve

Unlimited Laboratory Applications

• Dose by Dose Distribution
• Dispensing Distribution
• Sterile Work
• Animal Injection

Product Advantage

1) Simple and natural movements: The activation of the DaVinci Self Refilling Syringe is performed with limited effort for efficient work even during long dispensing series. This ensures complete user comfort.

2) Fast and reliable volume selection : Volume is set within seconds. It will not vary while activating the syringe, thanks to the safety locking nut on the micro metric screw. Dose-by-dose reproducibility is excellent

3) Plunger tightness without O ring: The smooth plunger travel and tightness is achieved through the high-precision stanless steel plunger and grounded glass barrel. No O-ring to mess with or replace ever.

4) High quality construction: All components are made of superior quality raw material which are thoroughly checked by our qualified QC department prior to production. Each component is made from Superior Quality material including glass, plastics, metals etc. These are thoroughly checked during each stage of manufacturing for quality & specification.

5) Sterilization: Sterilization possible while fully assembled in boiling water or in autoclave at 121C (250F).

6) Economical & Low replacement cost : : Only the glass part will have to be changed instead of buying a new device. Truly an unbeatable Price to Quality Ratio Product.

7) Glass Protection : 1) Interchangeable glass barrel is protected by a PVC sleeve (not autoclavable) to prevent breakage.

8) Low maintenance: 1) The DaVinci Syringes are made of only 6 main parts, which are easy to disassemble & reassemble. The fast access to all elements allows rapid & efficient cleaning. Spare parts are available at reasonable cost.

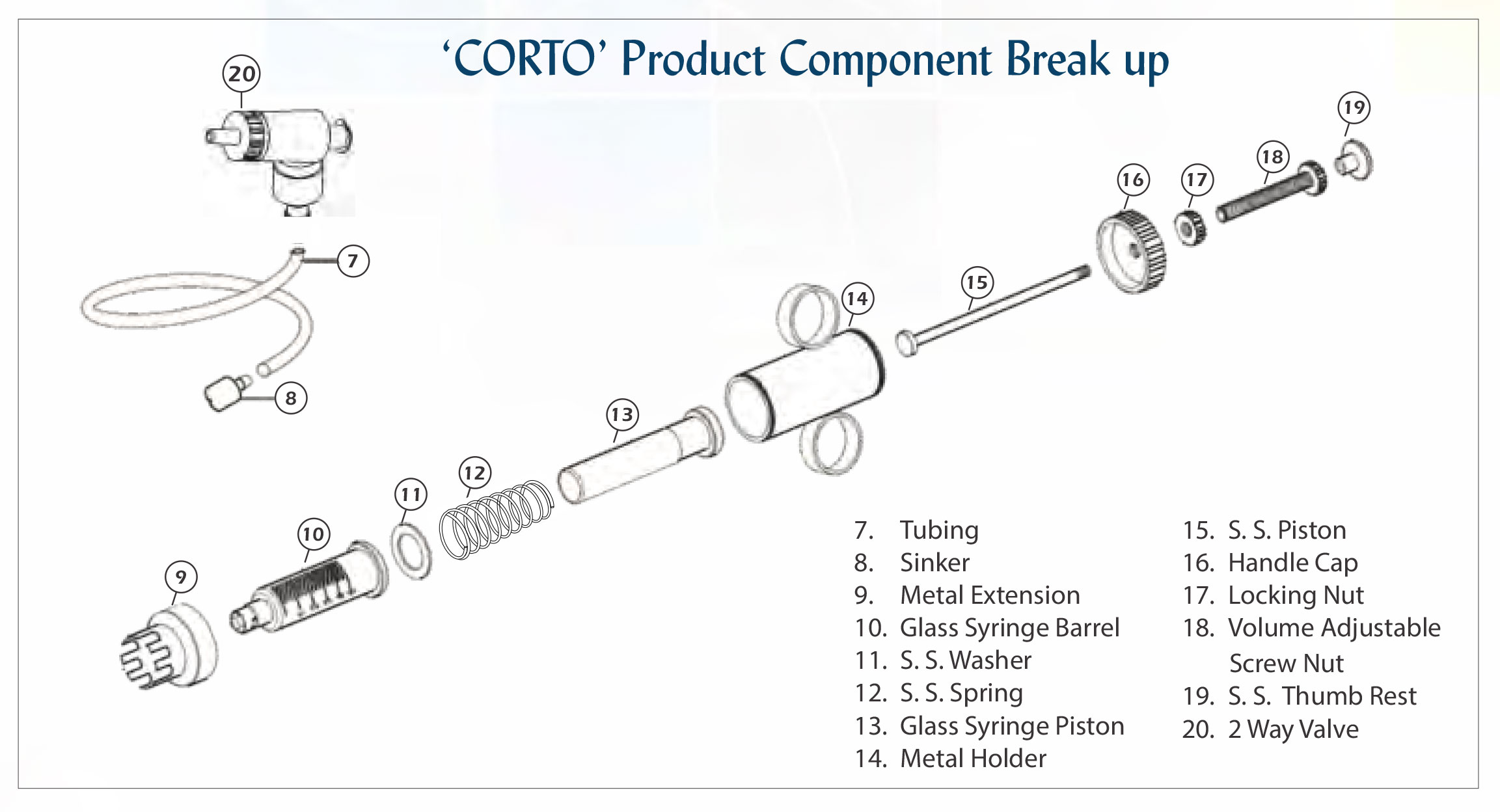

The ‘CORTO’ Glass Syringe Pump is a Repetitive dispenser for fluid transfer that facilitates repeatable dosage distribution. The System offers a user-friendly design for fluid transfer - without the capital investment required for filling pumps. The device is for use with a wide variety of reservoirs, including vials, syringes, oral medication containers. Also used for drug dosage distribution and reconstitution in hospital pharmacies.

‘CORTO’ Glass Syringe Pipettors, have contoured finger rings and thumb rest that allows effortless, non-fatiguing one-handed operation. These features provide for self- refilling , allowing continuous pipetting from a single liquid reservoir. The pipettors are easily assembled. All units are autoclavable and are ideal for use with sterile media during aseptic techniques.

• Simple screw adjustment for accurate volume setting
• Automatic return of spring loaded plunger to preset volume for quick repeat dispensing.
• Convenient finger-holds for effortless single hand operation.
• Filling assembly attachment enables continuous refilling from reservoir and repetitive delivery of preset volumes.
• Unique design of stainless steel bivalve and sinker ensures smooth, leakproof liquid transfer.
• Simple Natural Movements
• Plunger Tightness without‘O’Ring
• Volume Selection
• Low Maintenance

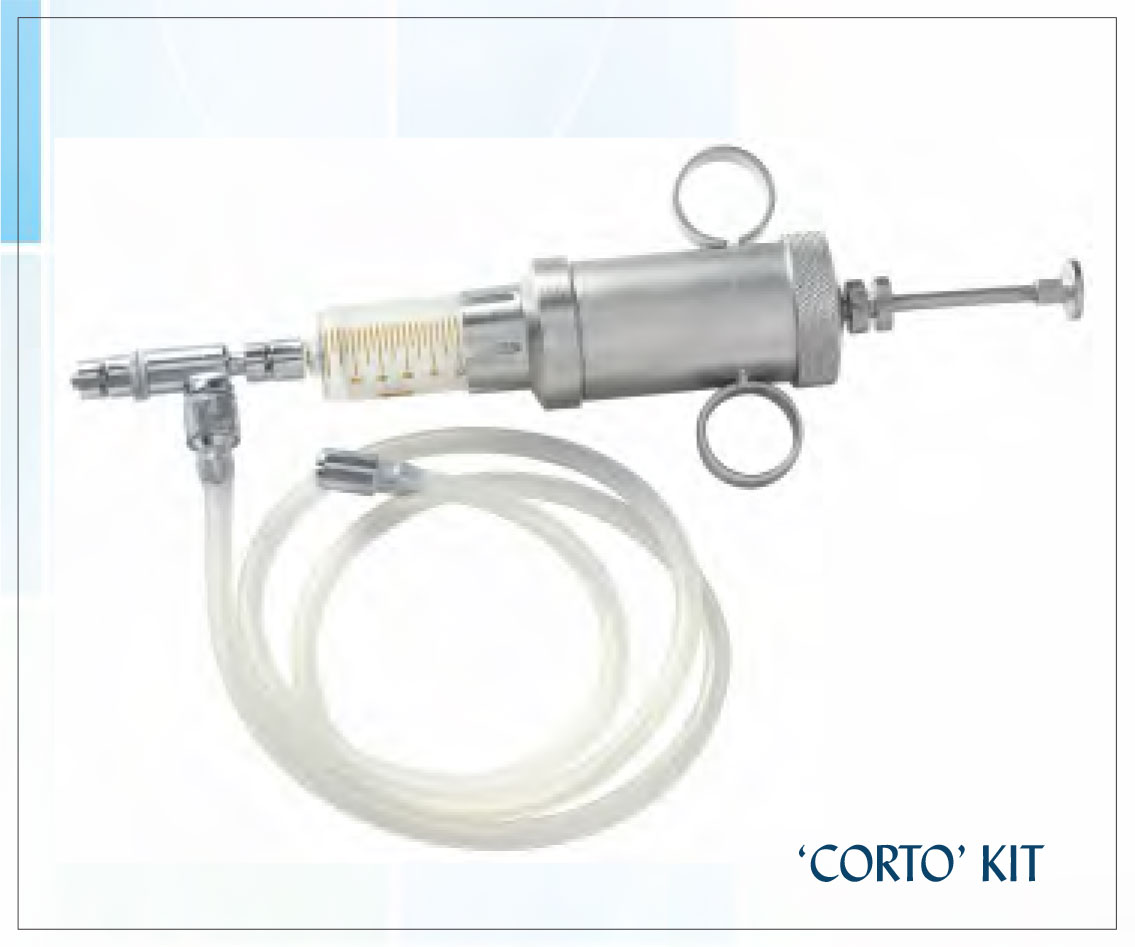

'CORTO’ Syringe Kit

14-05-30-00	2ml / 0.05ml / 1pc
14-08-30-00	5ml / 0.25ml / 1pc
14-09-30-00	10ml / 0.50ml / 1pc
14-10-30-00	20ml / 1ml / 1pc

On Request	50ml

CORTO Glass Syringe pipettor units feature durable spring loaded syringe assemblies, automatic 2-way valves, Replacement syringes fit interchangeably into both CORTO Glass Syringe pipetting assemblies as well as BD Cornwall Pipetting Outfits.

BD Cornwall is a registered trademark of Becton Dickinson and Company.

Unlimited Applications:

• Dose-by-dose distribution
• Dispensing distribution
• Sterile Work
• Filtration
• Animal Injection

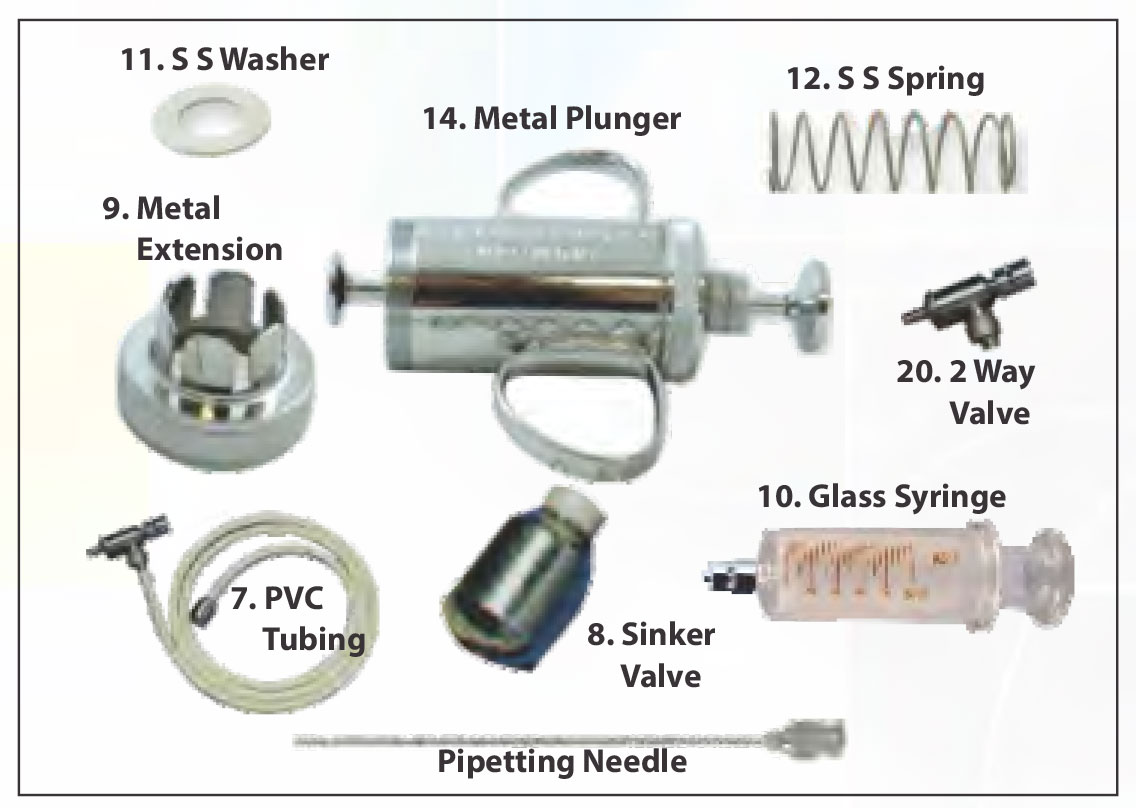

'CORTO’ Spares

‘CORTO’ Glass Syringe Metal Luer Lock Tip (CWCL)

14-05-02-03	2ml / 0.05ml / 10pcs
14-08-02-05	5ml / 0.2ml / 10pcs
14-09-02-06	10ml / 0.5ml / 10pcs
14-10-02-07	20ml / 1ml / 10pcs

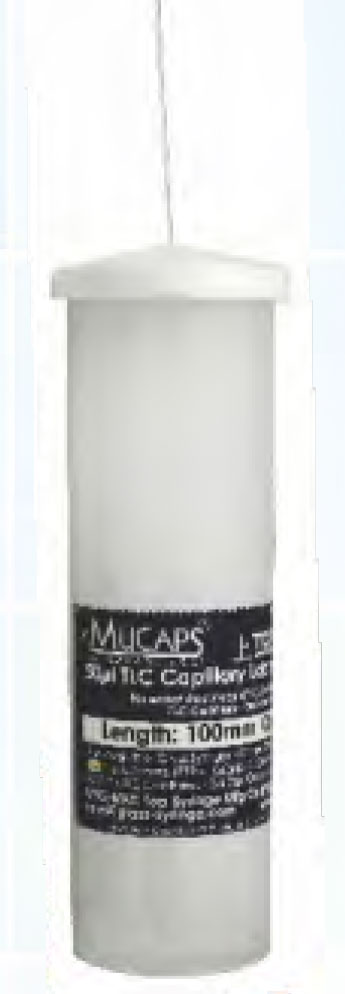

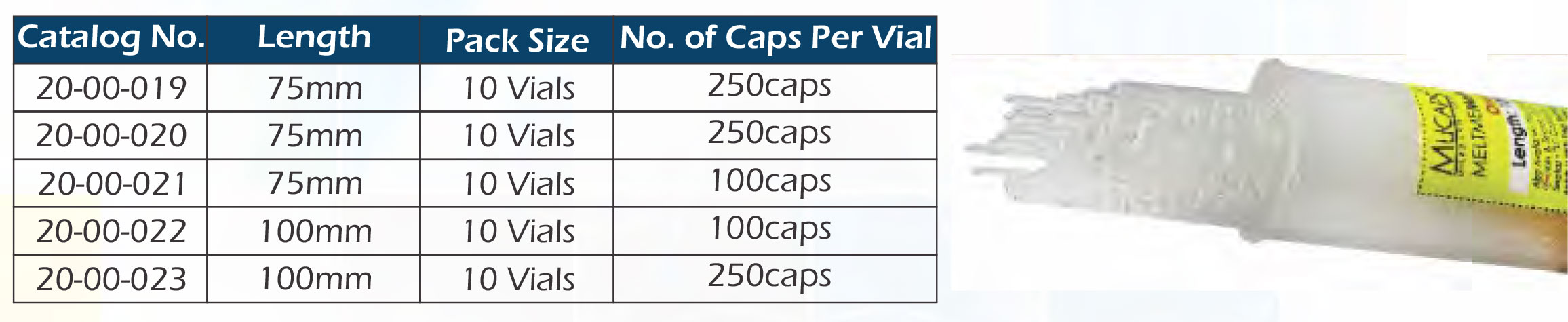

TLC Application : Laboratory Grade

Catalog No	Length	Pack Size	No. of Caps / Vials
SP-2013	100mm	10 Vials	250

Other sizes and Research grade available on request including 9" spotting TLC Capillary

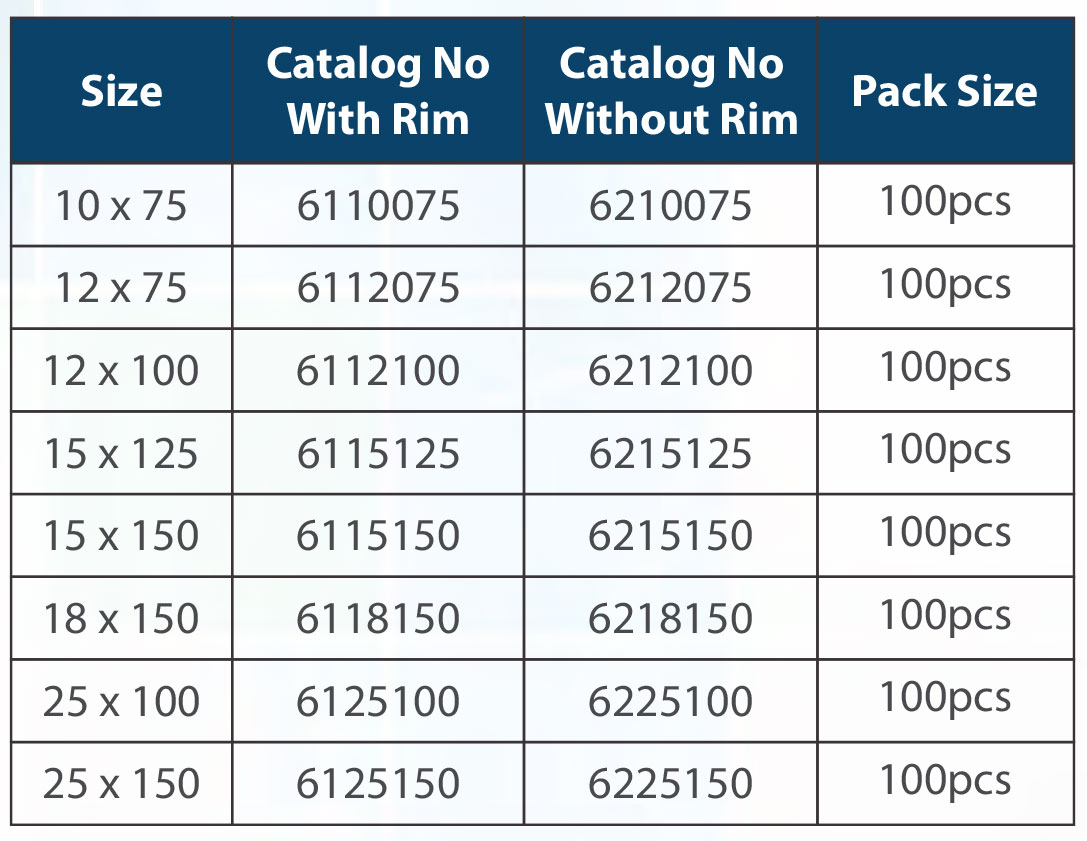

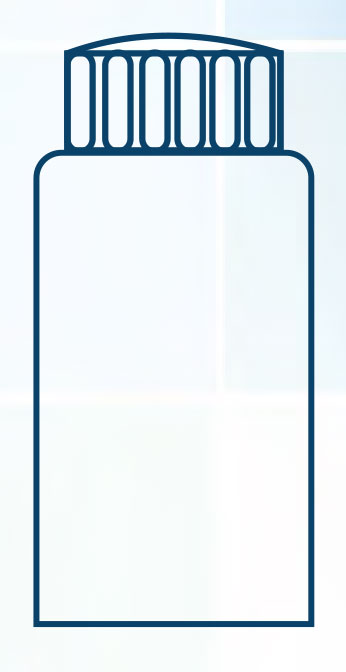

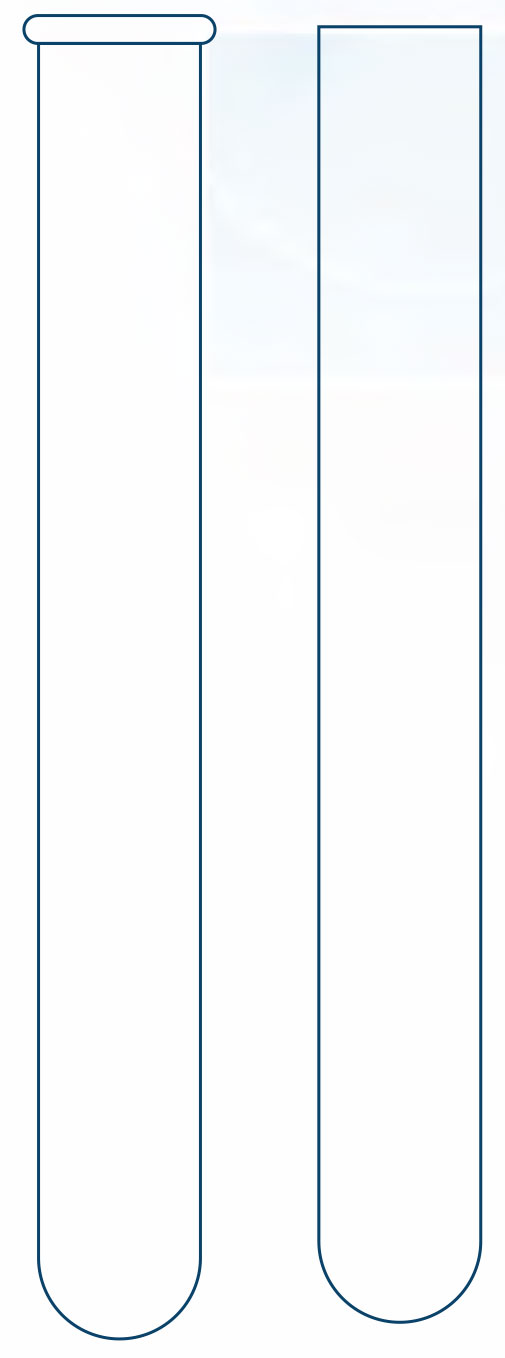

Culture Tube 3.3

Tubes - Culture, Media, Round / Flat Bottom with Screw Cap & Rubber Ring

Brand Culture Tubes are made from machine drawn, uniform thickness, low expansion borosilicate glass tubing. The bottoms of these are with uniform thickness to withstand both mechanical and thermal shocks. The rims wherever provided, are strong. Culture tubes without rim have heavy fire-polished ends which are resistant to mechanical shocks of daily use. Culture tubes are good for cell growth. The caps and washers provided on screw cap culture tubes withstand repeated autoclaving.

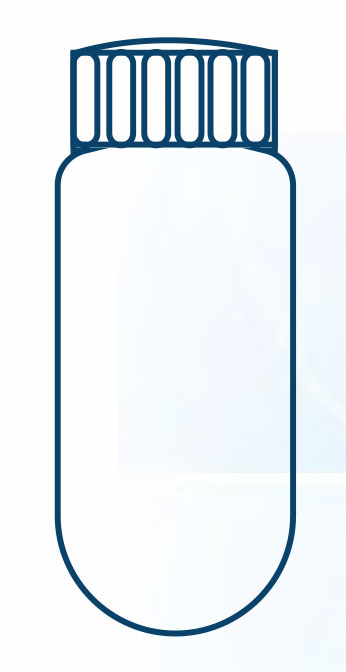

2) Round Bottom Culture Tube with Screw Cap & Rubber Liner

3) Flat Bottom Culture Tube with Screw Cap & Rubber Liner

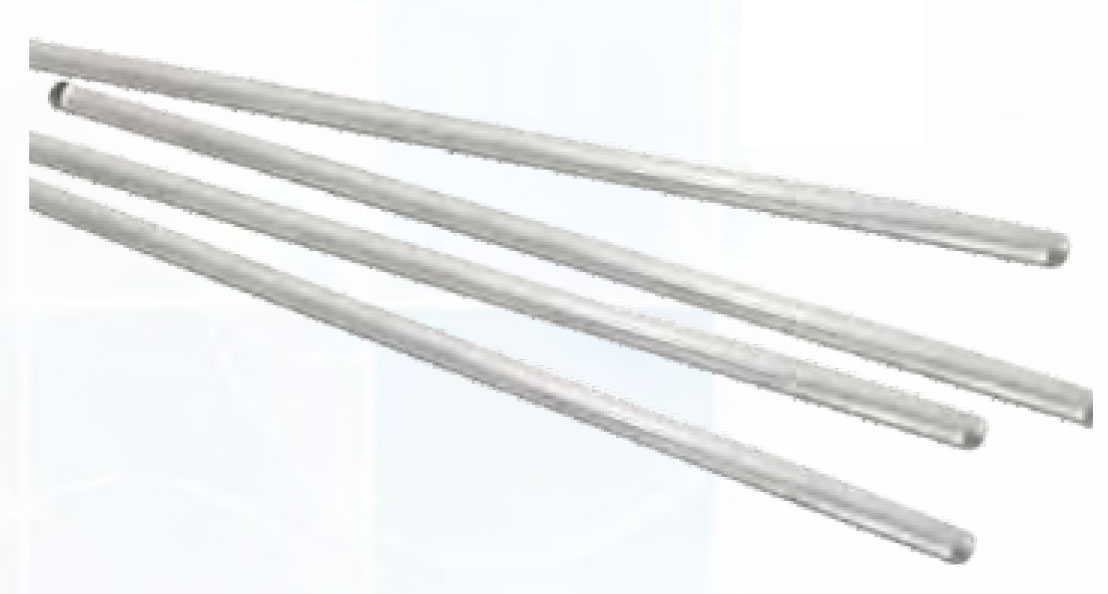

STIRRING ROD

2) Hyalus Glass Stirring Rod

Made from . exp Glass With Rounded Ends for extra Safety and to minimise Scratching.

SP-60-A	Glass Stirring Rod	Ø 3mm, L 100 mm
SP-60-B		L 200 mm
SP-61-B		Ø 4mm,L 200 mm
SP-63-B		Ø 6mm,L 200 mm

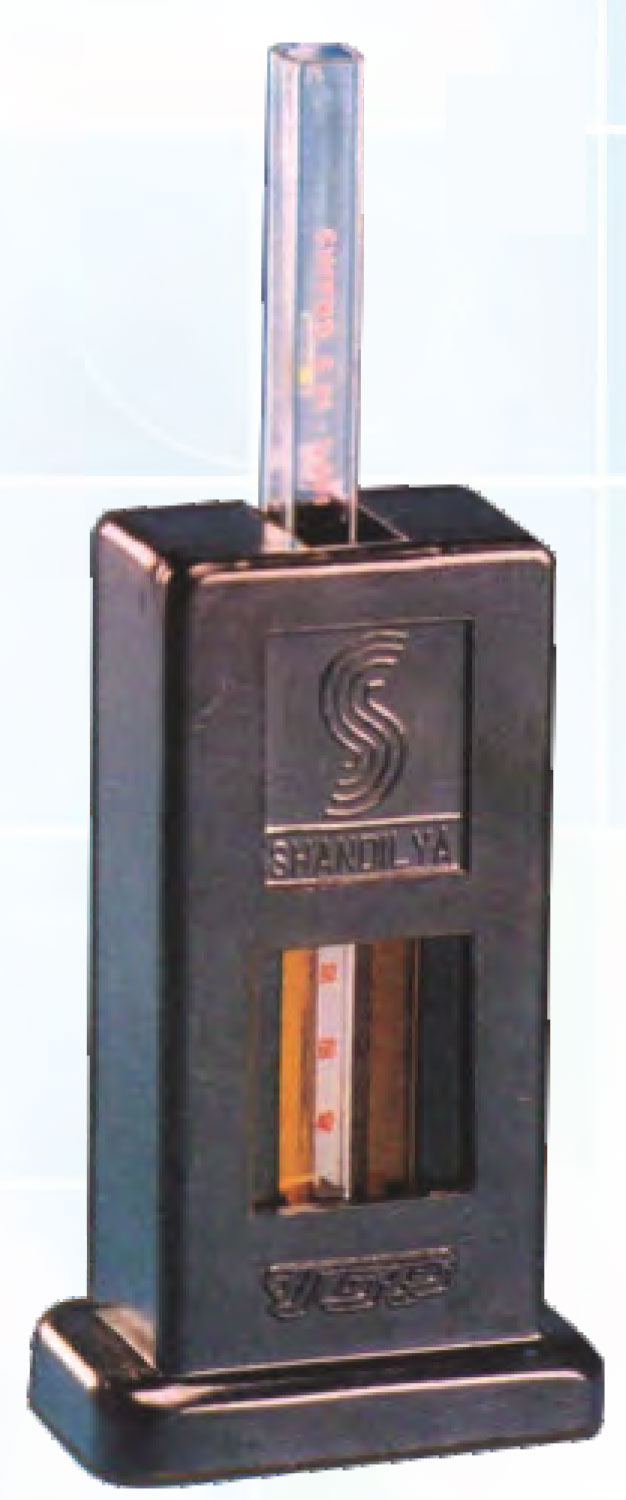

1) Haemometers (SAHLI type) & Accessories

The Shanadilya brand haemometer housing is moulded from thermo-setting phenol formaldehyde resin which makes it resistant to most laboratory reagents. It is also very convenient to handle, light in weight, and gives unlimited service. The permanent non-fading colour standards are made with optical precision for accurate and exact matching of colour. They are comparable with international master colour standards of hemoglobin values. They never fade or get discoloured.

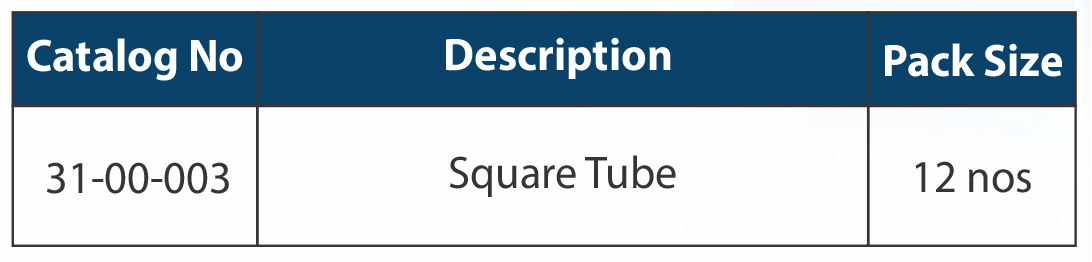

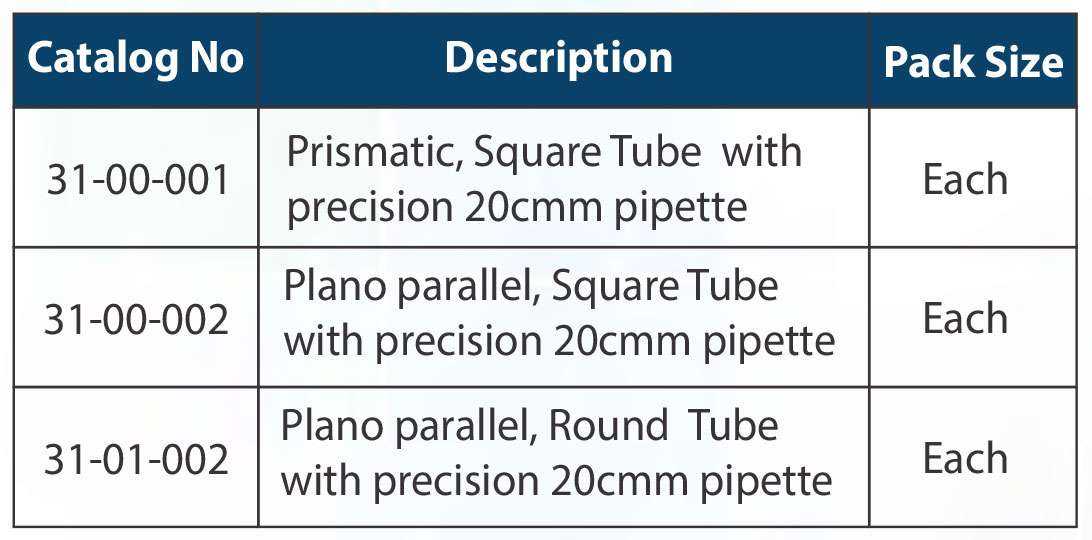

2) Accessories: Square Tubes

Made up of hard borosilicate glass with permanent non filing scales on two opposite sides, one in yellow and another in red. Yellow colour scale indicates absolute value of gms/100cc and red one indicates value of hemoglobin percentage in blood. Conforms to IS 9430.

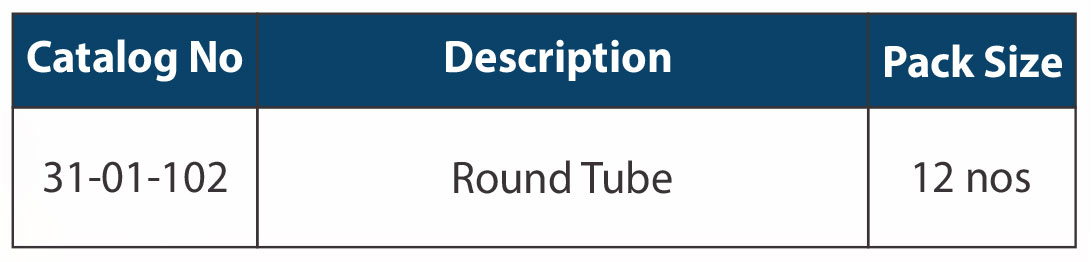

3) Round Tubes

Made up of hard borosilicate glass with permanent non fading scales on two opposite sides, one in yellow and another in red. Yellow colour scale indicates absolute value of gms/ 100cc and red one indicates value of hemoglobin percentage in blood. Conforms to IS 9430.

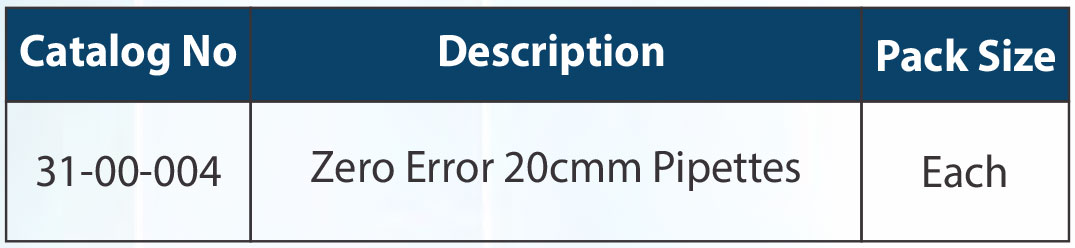

1) Zero Error 20cmm Pipettes

An accurate pipette with uniform capillary bore for easy blood delivery. It is sterilisable either by hot air or by steam sterilizer. It is marked at 20cmm.

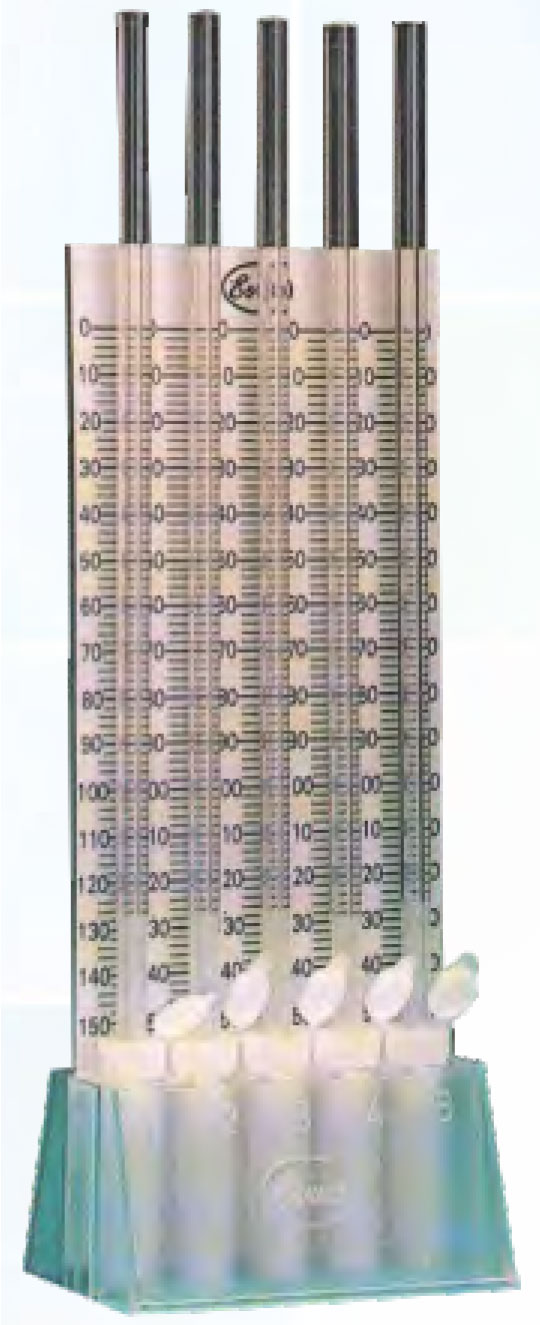

2) ESR Esrite Kit

The Kit comprises of non-corroding, washable polypropylene interlocking stand with provision to simultaneously hold 5 or 10 pipettes. The Esrite Pipettes are manufactured from hard borosilicate glass, to international standards using special uniform bore technology. The ESR tubes are ground at the bottom, perfectly cylindrical and accurate to micron tolerances to give leak proof closure in the blood sample vial. Anodized aluminum screen with permanent blue scale helps easy reading of sedimentation rate. Vials of chemically resistant plastics are manufactured in strictly controlled atmosphere.

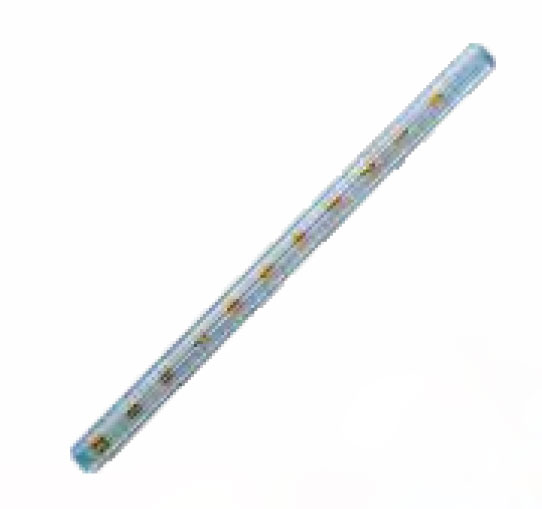

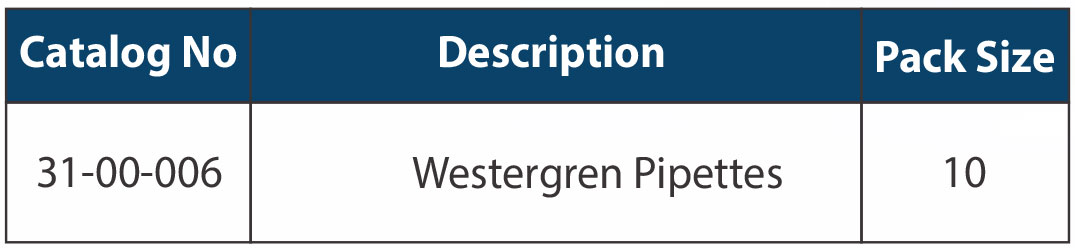

3) ESR Esrite Kit Spares Westergren Pipettes

The pipettes are made of hard borosilicate glass with uniform bore and are used for finding out Erythrocyte Sedimentation Rate. Conforms to IS 3741.

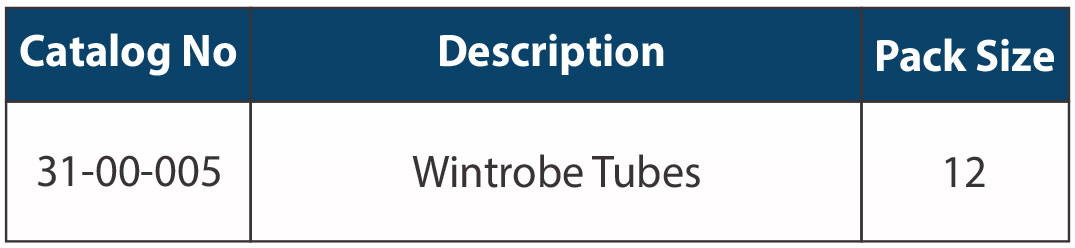

1) Wintrobe Tubes

Made of hard borosilicate corning glass with uniform bore so as to avoid breakage during centrigugation. Very useful in determining packed cell volume of blood. Conforms to IS 3741.
